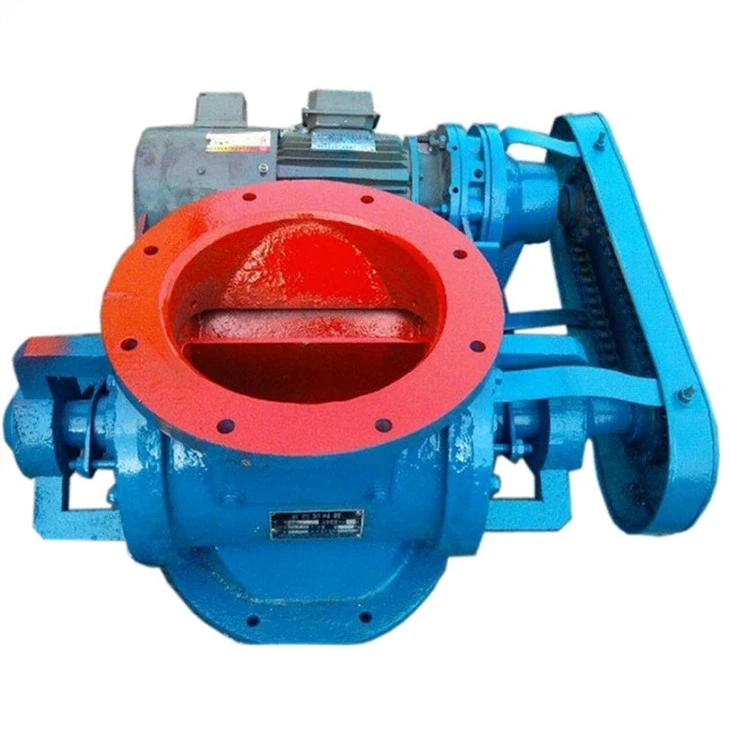

Rotary valve yog ib hom khoom siv tshuab siv hauv cov khoom siv tuav thiab ua cov ntawv thov los tswj cov khoom ntws ntawm cov khoom loj. Lub valve muaj ib lub cylindrical vaj tse nrog ib tug rotor nyob rau hauv uas rotates thiab tsim ib lub foob ntawm txawv qhov chaw ntawm lub valve. Lub rotary valve muab faib ua round flange thiab square flange.
Parameter
|
Qauv / Lub npe |
YJD 2 |
YJD 4 |
YJD 6 |
YJD 8 |
YJD 10 |
YJD 12 |
YJD 14 |
YJD 16 |
YJD 18 |
YJD 20 |
YJD 26 |
YJD 30 |
|
Muaj peev xwm (L/R) |
2 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
26 |
30 |
|
r / min |
25-40 |
|||||||||||
|
Temp (degree) |
T Tsawg dua los yog sib npaug rau 80 degree thaum temp yog ntau tshaj 80 degree, yuav tsum tau ua kev cai. |
|||||||||||
|
Khoom |
Hmoov los yog hmoov zoo |
|||||||||||
|
Lub cev muaj zog (KW) |
0.75-2# |
0.75-2# |
0.75-2# |
0.75-2# |
1.1- 3# |
1.1- 3# |
1.5- 3# |
1.5- 3# |
1.5- 3# |
1.5- 3# |
2.2- 3# |
2.2- 3# |
|
Qhov hnyav (kg) |
65 |
75 |
80 |
80 |
112 |
120 |
120 |
130 |
150 |
170 |
200 |
240 |
Txoj Cai Ua Haujlwm
Rotary valve yog tsim los ntawm lub plhaub, impeller thiab kawg npog. Lub reducer, tsav ncej thiab impeller yog sib xyaw ua ke rau hauv ib chav tsev, uas yog txhim khu kev qha, lub teeb thiab txuag hluav taws xob. Raws li cov bearings thiab reducer ntawm lub tshuab yog protruding sab nraud, nws muaj peev xwm zam qhov tshwm sim ntawm plua plav squeezing rau hauv bearings thiab loj granular cov ntaub ntawv jamming.
Daim ntawv thov
Teb valve yog dav siv nyob rau hauv cement, tsev cov ntaub ntawv, mining, hlau thiab hlau industries.
